Distribution Automation System

The XSJ-1600 distribution automation system is developed based on the State Grid's "Technical Guidelines for Distribution Automation" and the "Technical Guidelines for Urban Distribution of China Southern Power Grid," fully adhering to the IEC61970 and 61968 international standards. It is a new generation of intelligent distribution automation system products based on SCADA, with automated management as the core application. The system meets the needs of photovoltaic access, microgrid access, and distributed energy access through flexible configuration and functional expansion.

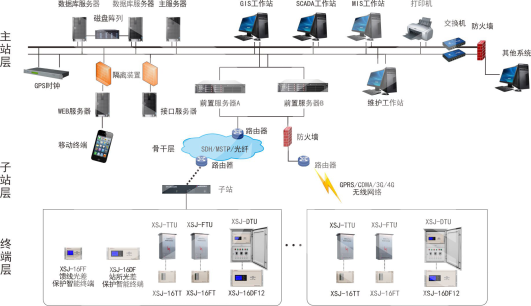

The XSJ-1600 distribution automation system integrates measurement, protection, control, and remote communication. The system's feeder automation is achieved through both local and centralized methods. The main distribution loop adopts centralized control, coordinated by the master station system, utilizing the communication network for control; branch and radial power supply use local control methods (voltage-type local control, fiber differential local control), achieving rapid control by region. By communicating with the distribution automation master station system, it enables operation monitoring, fault detection, intelligent early warning, fault area isolation, non-fault area self-recovery power supply, and programmed sequential control of distribution and its on-site equipment. The application of the XSJ-1600 distribution automation system helps improve the reliability and power supply safety of the distribution system, reduces personnel and increases efficiency, decreases the outage time and area of the distribution system, as well as maintenance time, enhancing the operation, maintenance, and management efficiency of the distribution system.

Applicable to various urban distribution centers, general urban areas, urban-rural junctions, remote suburbs, rural feeders, and distribution and dispatching in industrial and mining enterprises, the device is installed in various applications such as 10kV switch stations, ring network cabinets, box-type substations, pole-mounted switches, reclosers, sectionalizers, distribution rooms, or distribution transformers.

The complete relay protection performance, using highly reliable network-based optical fiber differential protection and regional network protection design, can quickly achieve millisecond-level fault location, on-site fault isolation, and self-recovery power supply in non-fault areas, as well as second-level self-healing control of distribution network area faults, meeting the high reliability power supply requirements.

Standardized design structure with strong data interchangeability: Fully comply with IEC61970 and 61968 international standards, based on distribution automation monitoring equipment, focusing on distribution scheduling and operation management, emphasizing distribution fault management, with strong data interchangeability with other systems.

Using object-oriented modeling approach, highly practical: Provides modeling tools oriented to the distribution network and a convenient, practical drawing management system, facilitating daily production, achieving computer management of drawings, and maximizing the reduction of production workload.

User-friendly interface, easy to use: Provides a powerful graphic component library, all screens can be customized, offering powerful drawing tools and organizational graphic tools for user convenience.

Powerful fault analysis capability: Equipped with accident recording and system fault analysis functions, it can analyze accidents and handle incidents in a timely manner based on the accident information, data, and waveform parameters uploaded by the intelligent terminal of the protection device.
The intelligent terminal is equipped with a Bluetooth interface, allowing for easy debugging, operation, and maintenance of the intelligent terminal through a Mobile APP.

Data Collection and Processing

Can collect real-time data from substations, switch stations, ring network cabinets, pole-mounted switches, distribution transformers, distribution stations, communities, box transformers, etc., including remote signaling, remote measurement, electrical measurement, GPS clock signals, and frequency data collection and processing.

Control Functions

Dispatch remote control operations for switch on/off, transformer tap adjustment control, compensation capacitor switching control, interlock control, remote setting of protection values, remote operation of protection and reclosing, etc.

Protection and Fault Handling

Light differential protection, automatic fault detection and identification, fault section location, fault section isolation, automatic power restoration for non-fault sections, network reconstruction, feeder overload, system switching operations, etc.

Event Alarm

Provides real-time alarm and historical query printing functions for events. Alarm types include warnings, actions, operations, systems, telemetry limit exceedances, remote signaling displacements, etc. Historical event queries can be categorized by time period, station information, group information, type queries, or combinations of various methods.

Database Management

Supports mainstream commercial data management, with functions for graphical and data classification processing, analysis, statistics, querying, and maintenance.

Reports and Curves

Provides functions for querying and printing historical data in the form of reports and curves. Reports include daily, monthly, and annual reports, each edited by a report editor, flexible and convenient; historical data for any telemetry point can be viewed in curve form.

Data Communication

Can achieve communication between the master station, substations, and remote terminals within the distribution system, and can also communicate with dispatch automation systems, management information systems, electricity management systems, and other subsystems or smart power sources, meter reading terminals, and other smart devices.

System Time Synchronization

The system has clock synchronization capabilities, synchronizing the system clock with satellite clocks.

Human-Machine Interface

Mainly includes electrical main wiring diagrams of the distribution system, monitoring screens of stations, system operating status diagrams, geographical wiring diagrams, and real-time status of devices such as FTU, TTU, DTU, providing manual settings and operational control interfaces, visually displaying flow direction, data, and fault information through curves, bar charts, and controls.

Advanced Applications

Advanced application functions such as network topology configuration, flow calculation, short-circuit current calculation, voltage/reactive power analysis and optimization, load forecasting, and network optimization can be selected based on the needs of the distribution network project.

Operation Management

Mainly includes distribution network conditions, power outage management, user complaint call handling, and work ticket management functions.

Equipment Management

Mainly includes patrol management, defect management, maintenance and fault repair management, and preventive testing management functions, displaying distribution power equipment and facilities layered on a geographical map background, editing, querying, and statistical relevant technical data and tables.

WEB Publishing

Supports remote real-time screen browsing, real-time data querying, remote report display, historical curve querying, historical event querying, etc. Web browsing of the power plant production process can be achieved using an Internet browser.

Mobile Management

The system supports information publishing, human-machine interaction, and process operations through mobile terminals, achieving mobile office for the automated operation, maintenance, and management of the distribution system.
