Smart Water and Rain Alert System
- Overview
- Main Features

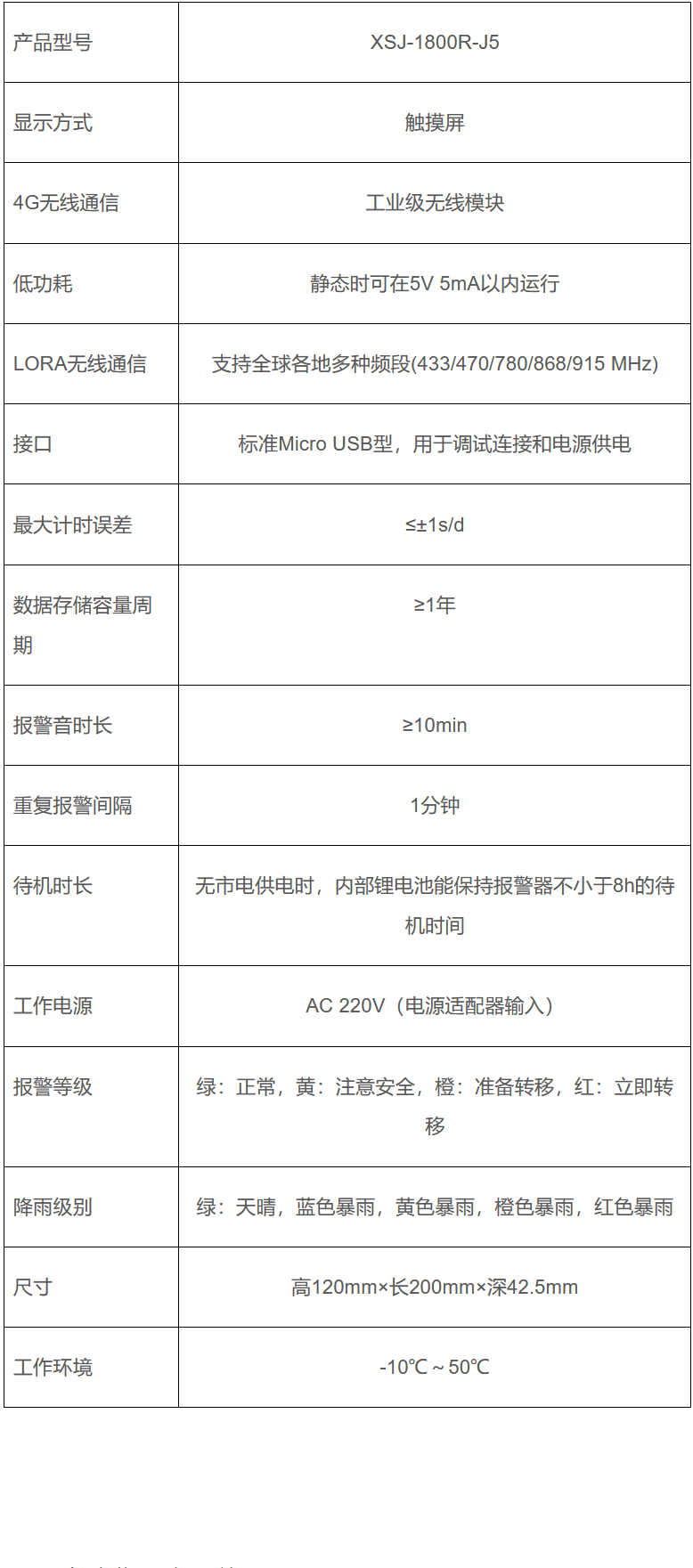

- Main Indicators
- Main functions
- Device Configuration
The XSJ-1800R-J5 intelligent rain and water condition alarm is the core metering device of the water and rain condition, and water resource monitoring management system field measurement and control station. It can collect and display real-time rainfall and water level information, has the capability to connect to serial port configuration tools, and supports multiple parameter configuration methods including manual local and remote platform configurations. It also supports automatic alarms after collecting information that exceeds warning indicators, including graphic and text display, indicator light display, voice, and flashing alarms.
The XSJ-1800R-J5 intelligent rain and water condition alarm is commonly used in various prevention and control projects such as water conservancy, meteorology, and geological disasters, and is also suitable for places prone to water hazards such as schools, factories, urban security, and warehouses.

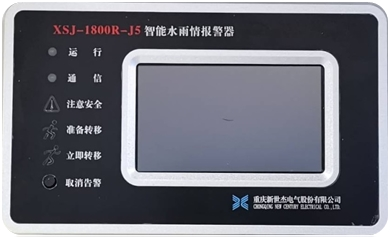

XSJ-1800R-J5 intelligent rain and water condition alarm

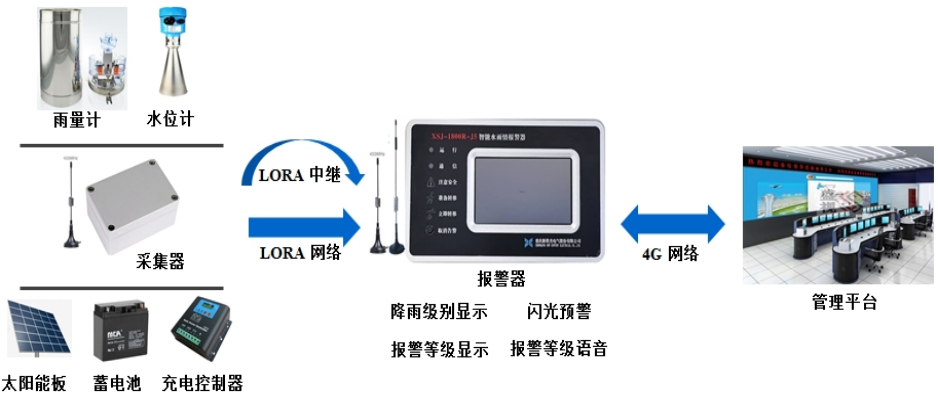

1) Wireless Communication: The collector receives information collected by the sensor and forwards rainfall and water level information to the alarm through LORA short-range communication; the alarm interacts with the management platform via 4G communication.
2) Relay Communication: Supports using the alarm as a relay station, meaning the collector transmits the collected data to the alarm, which then forwards it to the target alarm.
3) Remote Management: Administrators can configure parameters, perform remote upgrades, and manage other controls of the alarm in real-time through the remote management platform.
4) Online Self-Check: Supports real-time monitoring of the alarm's operating voltage, battery charge and discharge status, battery level, and the collector's operating voltage.
5) Low Power Operation: Low power design allows the device to operate in low power standby mode for extended periods.
6) Easy Maintenance and Use: Simple structural design for easy installation and maintenance; user-friendly interface management with low learning costs.
1) Rainfall and water level collection: Real-time monitoring and display of rainfall and water level information forwarded by the collector, along with analysis and storage.
2) Parameter configuration: Connection configuration tools, remote platforms, and local operations can configure various parameters of the alarm.
3) Local storage: Capable of storing historical rainfall data, historical water level data, and alarm records generated during inspections, facilitating daily management and maintenance.
4) Historical query: Can query historical rainfall and water level data, as well as alarm record information.
5) Clear data: Can clear the historical data and alarm records stored in the device.
6) Working mode: Supports four working modes: query, compatibility, self-reporting, and debugging.
7) Central configuration: Can connect to 4 different protocol central stations.
8) LORA communication: Data is transmitted between the collector and the alarm via LORA communication, allowing for multi-group networking communication.
9) Voice alarm: Supports voice alarms with phrases "Pay attention to safety", "Prepare to transfer", and "Transfer immediately" after exceeding warning indicators.
10) Indicator light alarm: Supports constant display of indicator lights with phrases "Pay attention to safety", "Prepare to transfer", and "Transfer immediately" after exceeding warning indicators.

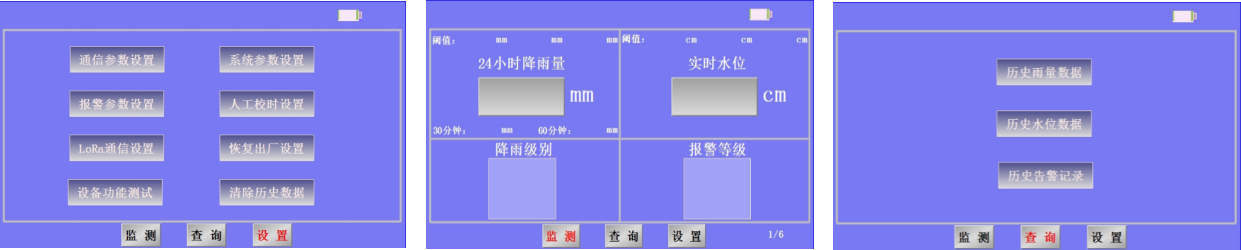

11) Graphic display: Supports real-time display of corresponding icons and text for "Rainfall level" and "Alarm level" on the touchscreen after exceeding warning indicators.
12) Alarm management: Configure parameters to control alarm duration and alarm sound (on or off), as well as cancel the alarm during an alarm to interrupt it in a timely manner.
