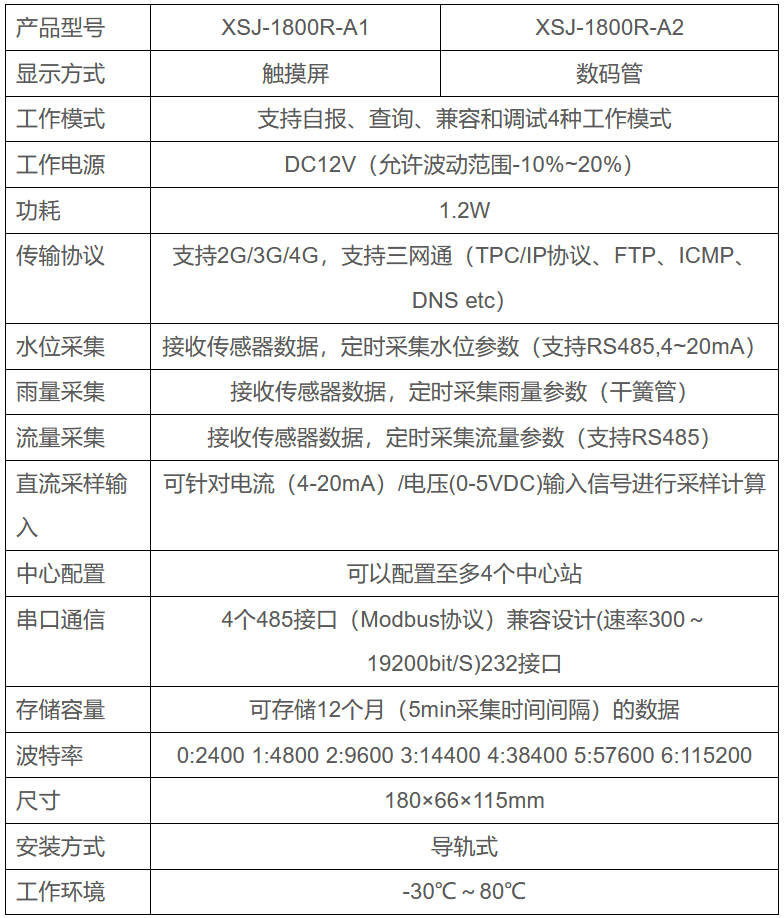

- Main Indicators
- Main functions

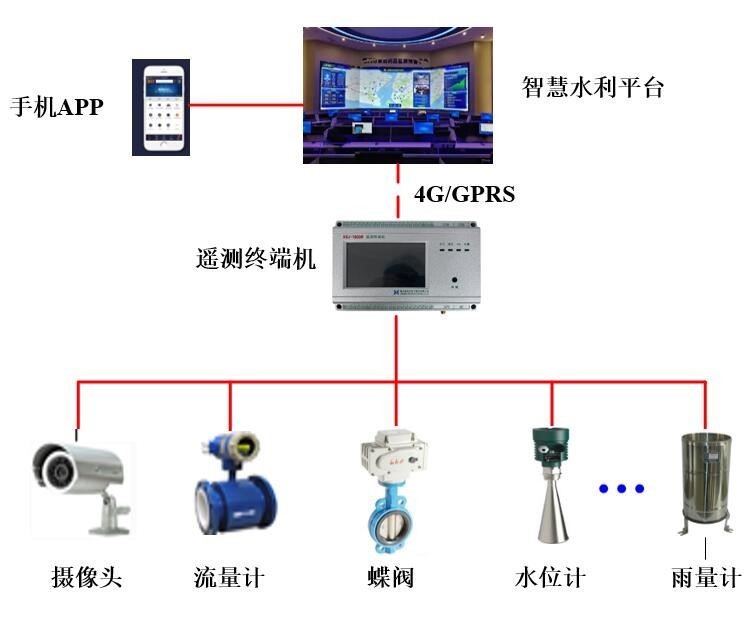

- Device Configuration
The XSJ-1800R telemetry terminal is the core equipment of the hydrological, rainfall, and water resource monitoring and management system's on-site measurement and control station. This telemetry terminal integrates the data collection, transmission, storage, and other functions of traditional hydrological telemetry terminals with wireless communication capabilities such as 4G/3G/2G/NB-IoT/LoRa, featuring comprehensive functions for the collection, storage, display, control, alarm, encryption, communication, and remote management of hydrological, rainfall, and water resource data and image information.
The XSJ-1800R telemetry terminal product adopts a low-power design, making it particularly suitable for on-site measurement stations powered by solar energy, which can significantly reduce solar power supply costs and lower construction difficulty. It is widely used in industries such as hydrology, water conservancy, water affairs, meteorology, geology, and environmental protection.

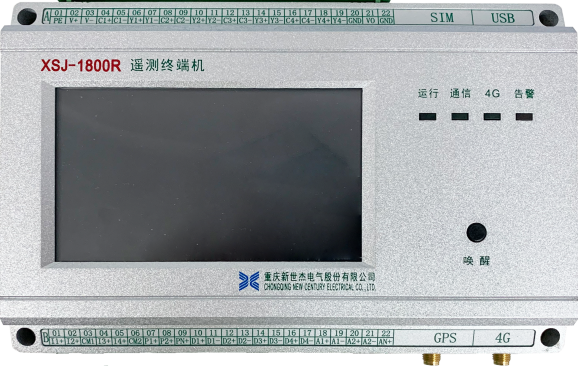

XSJ-1800R-A1 (Touch Screen Version)
The XSJ-1800R telemetry terminal is an IoT smart terminal product designed with a high-performance integrated CPU.
1) According to the technical specifications of the national water resources department's hydrology and water resources automatic monitoring and reporting system.
2) Optional support for various communication protocols in the water conservancy industry standard hydrology, data transparent transmission, or Others communication protocols.
3) Supports logical customization, optional support for various wireless communications such as 4G/LoRa, multi-point reporting, and 4 communication interfaces.
4) Configured with a 4.3-inch color touch screen for data and chart display.
5) Features online monitoring and fault self-diagnosis, capable of remote operation and maintenance, connecting to cloud platforms and mobile APP applications.
6) Low power consumption design, automatic sleep and energy-saving operation, suitable for field situations without mains power and solar power supply.
1) It has the setting functions for station number, sampling interval, self-reporting time, parameter base value, and parameter threshold.
2) It has the setting functions for parameter over-limit reporting frequency, parameter types, communication mode selection, etc.
3) When the basic configuration of the terminal or parameter configuration changes, it actively reports to all online central stations.
4) In automatic channel switching mode, it has functions such as automatic judgment, switching, and reporting (judging whether the main channel data is sent successfully; if not, it automatically switches to the SMS backup channel and sends the data to the preset mobile number).
5) It has manual alarm (reporting safety) coding function under extreme conditions.
6) It can control a digital camera or camcorder to take on-site pictures and report to the central station via RS485 serial port and related commands.
